10.1" bezel free PCAP wall mount Monitor

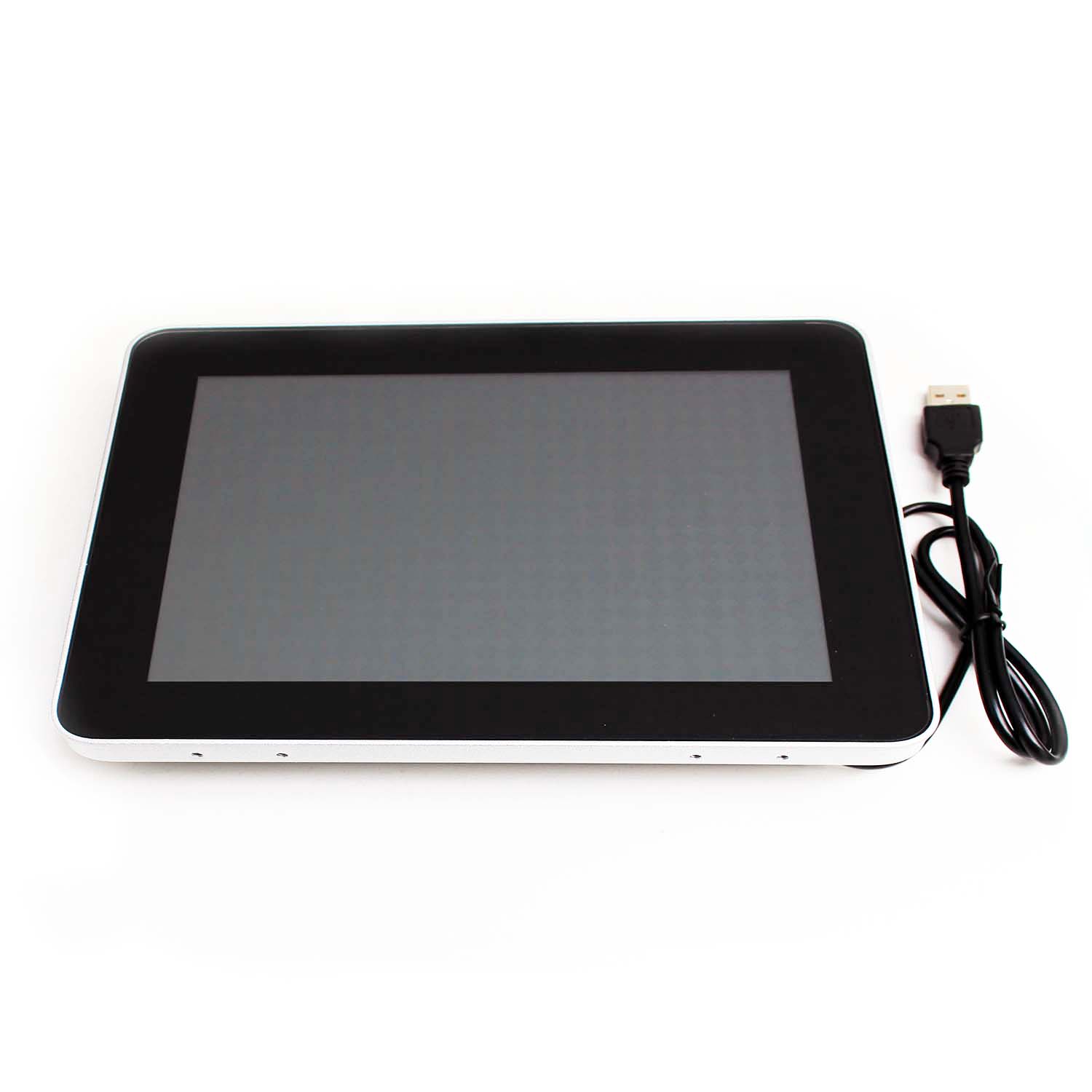

touchscreen monitor on wall mount 10.1 inch front
10.1" bezel free PCAP wall mount Monitor
Net price (excl.VAT) €319,00
Art.No.:
1020152829*
Brand:
A1Touch Solution
Name:BFR 10.1" wall mount projected capacitive touchscreen monitor, VGA/ HDMI/ BNC/ Composite and USB.
Descriptions: 10.1 inch on wall monitor with pcap touchscreen, bezel free with 4mm thick full glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is NOT in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

    Product Features:

    - Bezel free design with glass surface.
    - Precise multi-point (10 points) touching.
    - Camera and Television function (via BNC) and Digital Picture Frame (via USB).
    - Maintenance free.
    - Complete metal monitor with strong stability.
    - Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
    - Unit can be touched with finger, hand gloves or stylus pencil.
    - Fast touch response (less than 10 ms).


    Specifications:

    General

    Model:
    BFR101
    Size:
    10.1" ( 10.1” active area)
    Panel Type:
    TFT-LCD
    Backlight:
    LED
    Display colour:
    16.7M
    Color:
    Black
    Material:
    Metal housing, Glass cover glass
    Mounting Option:
    VESA 75x75
    Video Inputs
    Inputs: VGA/ HDMI/ BNC/ USB
    Dimensions

    Outside dimensions frame (wxh)
    358 x 170 x 32 mm
    Active area (wxh)
    216.96 x 135.6 mm
    Display

    Native resolution:
    1280*800 @60HZ
    Ratio:
    16:10
    Contrast:
    800:1
    Brightness:
    300 cd/m
    Viewing Angle (H/V):
    180/170
    Response time:
    <25ms
    Backlight life:
    50.0000 hrs
    Control:
    OSD Control (Remote control is option)
    Touchscreen

    Touch Technology:
    Projected capacitive Touch (G+G)
    Detected touches
    10 touches.
    Response time:
    <10ms
    Input Method:
    Finger, hand gloves, or conductive stylus
    Touch times:
    Unlimited
    Touch Activation Force:
    No minimum touch activation force is required.
    Controller type:
    EETI chipset 31xx
    Operating System Support:
    Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
    Environment

    Temperature:
    Operating:  -10°C ~ 70°C
    Storage: -20°C ~ 80°C
    Relative Humidity:
    Operating: 90%(non-condensing at max 40°C)
    Storage: 90%(non-condensing at max 40°C)
    Altitude:
    Up to 3000m
    Electrical

    Scan frequency:
    60Hz
    Operation Voltage:
    Typical +DC 12V, +/- 10%  (24 volt option).
    Power Supply:
    110-220V AC to 12Volt DC, min. 2A
    Power:
    6.5 W


    Packing

    Agency Approvals:
    CE, FCC, RoHS
    Weight net.:
    1,5 kg



    Options:


    Standard delivery: Our touchscreen monitor standard includes: pcap touchscreen with integrated USB controller with USB-A cable 0.5 meter and 220 – 12 Volt Power Supply.
    Power supply Cables:
    - With power supply and (analog) vga cable  (power supply is 110-220VAC to 12VDC).  Ask us if you need 24VDC on monitor. Power supply delivered with EU connection.
    - With power supply and (digital) HDMI cable.
    -Without power supply or cables

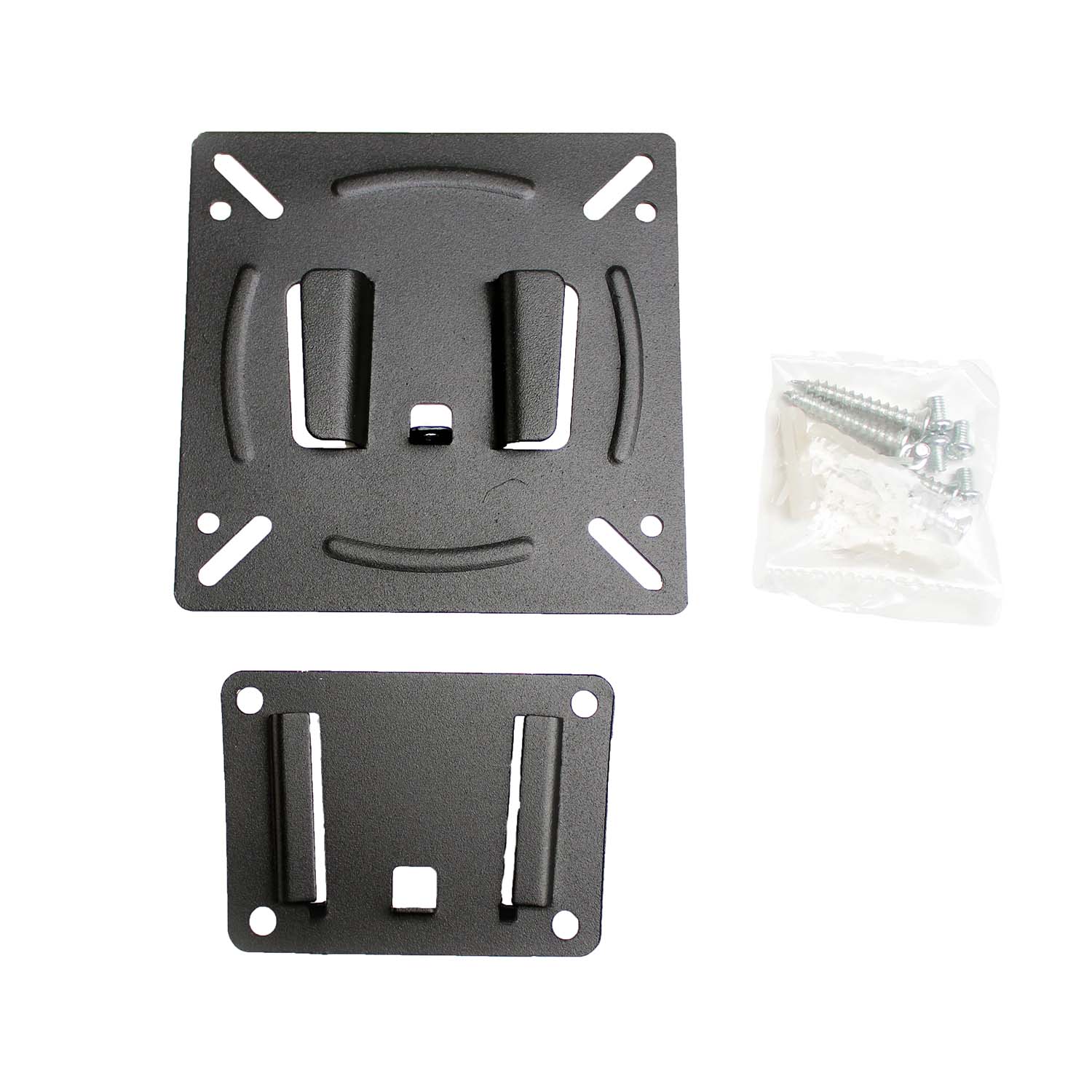

    Vesa wall mount bracket:
    - Without bracket (standard). You can use your own vesa bracket.
    - With our wall mount bracket:

    Accessories:
    - No accessories (standard)
    - With stylus pen and holder:

    - With remote controller:

    -With Stylus pencil, holder and remote controller.



    Specifications :

    Specs 07 inch AOD desktop touch Monitor manual
    Driver downloads : Touchscreen driver downloads

    You can purchase by selecting below mentioned options (if available). More info on tab "Options")
    ​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

    Discount on prices:

    • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
    • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
    Available options:
