13.3" On-wall mount (touch)Monitor
Net price (excl.VAT) €320,00
Art.No.:
1020153817 Brand:
A1Touch Solution
Type: AOD133-B; AOD / ATS 13,3" On-wall mount (touch)Monitor, VGA+DVI+HDMI - DisplayPort - mini DisplayPort.
Descriptions: 13,3 inch hufterproof on-wall mount monitor with protection glass acrylic, float- or hardened glass or with projected capacitive touchscreen of 3mm hardened glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock.
|
Product Features: |
| - Hufterproof design with full black powdercoated metal housing and minimal 3mm hardened (touch)glass. |
| - Precise multi-point (10 points) touching. |
| - Maintenance free. |
| - Complete metal monitor with strong stability. |
| - Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver). |
| - Unit can be touched with finger, hand gloves or stylus pencil. |
| - Fast touch response (less than 10 ms). |
Specifications:
|
General
|
|
|
Model:
|
AOD133-NB
|
|
Size:
|
13.3"
|
|
Panel Type:
|
IPS |
|
Backlight:
|
LED
|
|
Display colour:
|
262K
|
|
Color:
|
Black
|
|
Material:
|
Metal housing, Glass cover glass
|
|
Mounting Option:
|
VESA 75x75 mm
|
|
Video Inputs
|
Inputs: VGA/ DVI/ HDMI - DP or miniDP is option via cable
|
|
Dimensions
|
|
|
Outside dimensions frame (wxhxd)
|
325.6*205.4*46.3 mm
|
|
Active area (wxh)
|
293.76*165.24 mm
|
|
Display
|
|
|
Native resolution:
|
1920*1080 @60HZ
|
|
Ratio:
|
16:9
|
|
Contrast:
|
800:1
|
|
Brightness:
|
250 cd/m
|
|
Viewing Angle (H/V):
|
85°-85° / 85°-85° degrees
|
|
Backlight life:
|
Min.15.000 hrs
|
|
Control:
|
OSD Control
|
|
Touchscreen
|
|
|
Touch Technology:
|
Projected capacitive Touch (G+G)
|
| Touch panel: | Glare hardened glass, total thickness 3.95 mm |
|
Detected touches
|
10 touches.
|
|
Response time:
|
<10ms
|
|
Input Method:
|
Finger, hand gloves, or conductive stylus
|
|
Touch times:
|
Unlimited
|
|
Touch Activation Force:
|
No minimum touch activation force is required.
|
|
Controller type:
|
EETI chipset 80w46
|
|
Operating System Support:
|
Windows2000, XP, 7, 8, 10, 11, Android, Linux and MAC (inform us if you need MAC compatibility) .
|
|
Environment
|
|
|
Temperature:
|
Operating: 0°C ~ 50°C Storage: -20°C ~ 60°C
|
|
Relative Humidity:
|
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
|
|
Altitude:
|
Up to 3000m
|
|
Electrical
|
|
|
Scan frequency:
|
60Hz
|
|
Operation Voltage:
|
Typical +DC 12V, +/- 10% (24 volt option).
|
|
Power Supply:
|
110-220V AC to 12Volt DC, min. 2A
|
|
Power:
|
6.4 W
|
|
Packing
|
|
|
Agency Approvals:
|
CE, FCC, RoHS
|
|
Weight net.:
|
2.45 kg
|
| Options: | |
| Functionality: | With or without touch |
| - without touch: | Acrylic or glass |
| - with touch: Type of Touch: |
Projected Capacitive 10 point touch sensor with 3mm hardened glass Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform |
| - Projected Capacitive: | -Standard glare. -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. |
| External protection: | Standard IP44 or IP65 or higher |
| Touch controller interface: | USB. |

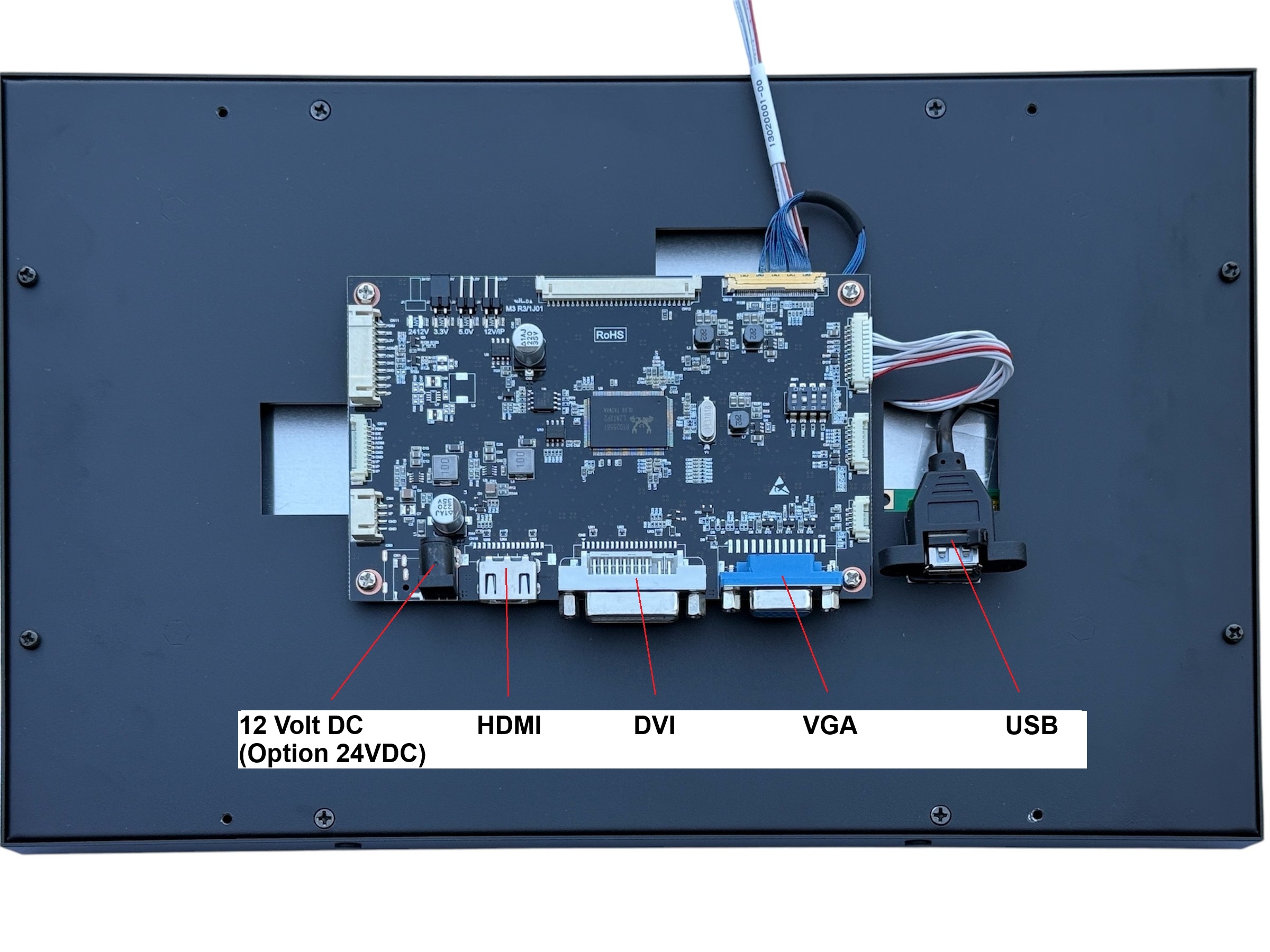

| Video input: | VGA+DVI+HDMI |
|
Specifications / Manual : |
 |
| Dimensions (Table) : | |
| Dimensions (Drawing) : | |
| Driver downloads : |  |
