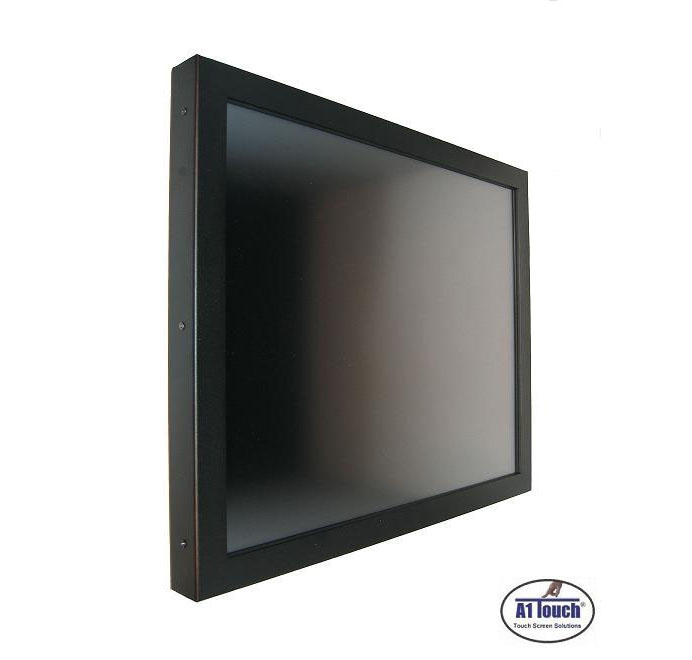

19" wide On-wall mount (touch)Monitor

On wall computer - muur montage computer
19" wide On-wall mount (touch)Monitor
Net price (excl.VAT) €338,00
Art.No.:
AOD190W-....-NB / -EB
Brand:
A1Touch Solution
Name: AOD / ATS 19" wide on wall mount (touch) monitor, VGA+DVI.
Descriptions: 19 inch on wall mount monitor with or without touchscreen, touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color panel: Black powder Coated (other colors on request)
Model: 19 inch, 16:10  WXGA TFT LCD Monitor
Type: 19 inch-wide Color TFT-LCD Module (AUO M190PW01)
Resolution (max): 1440x3(RGB) x 900
Color: 16,7 million
Pixel: 283.5 (per one triad) ×283.5
Brightness: 250 cd/m²
Contrast ratio: 1000:1
Viewing angle: 85°/85° horizontal & 80°/80° vertical
Response time 5 ms
Active area: 408.24 (H) x 255.15(V)
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <20 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 461x307x43mm (wxlxd)
Weight ca..9 Kg
Mounting: VESA 100x100mm; (No Wall bracket/ stand included in delivery; See: mounting_brackets)

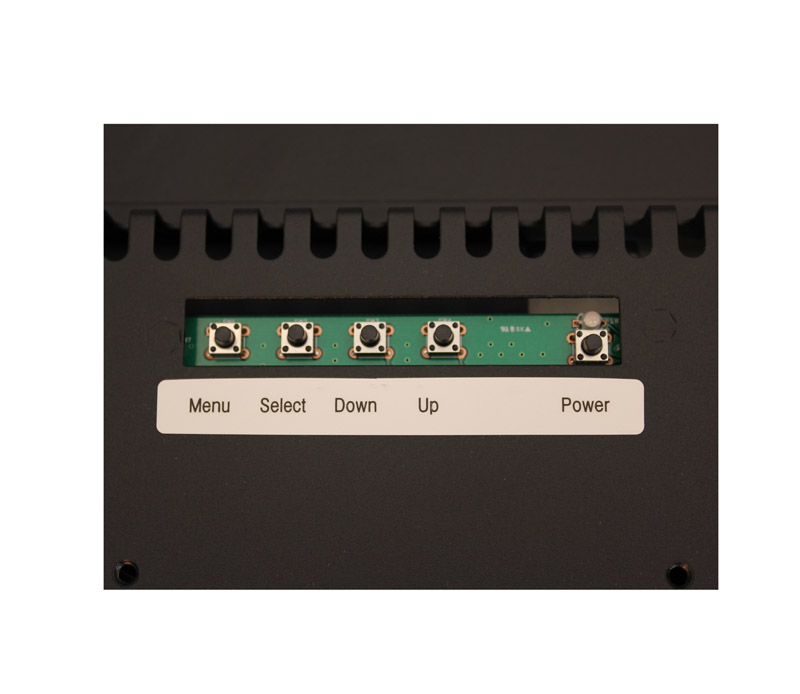

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Standard delivery:

With PSU, EU power cable and 1.8 m DVI cable but without vesa stand. Other options than below on request.
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.

Specifications / Manual :

specs 19 inch AOD wide desktop touch monitor manual
Dimensions : Dimensions 19 inch AOD wide desktop touch monitor
Driver downloads : Touchscreen driver downloads
Available options:
