27" On wall mount PCAP touchmonitor

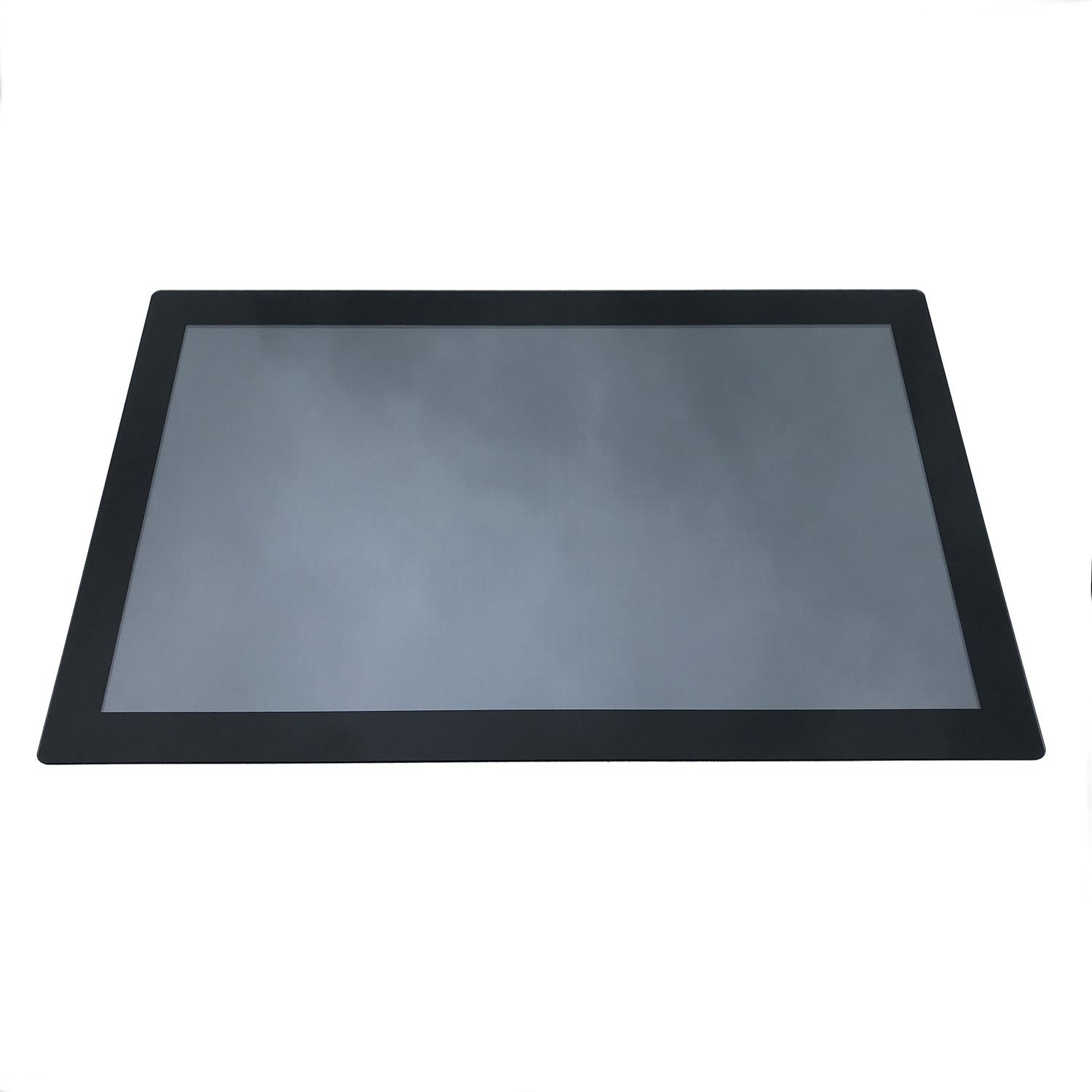

27" wall mount pcap touchscreen monitor front
27" On wall mount PCAP touchmonitor
Net price (excl.VAT) €920,00
Art.No.:
1020152977
Brand:
A1Touch Solution
Type: AOD270-GPCAP-WMB, 27" FHD (1920x1080 px) On Wall mount projected capacitive touchscreen monitor, VGA+DVI or AOD270-4K-GPCAP-WMB 27" UHD (3840x2160 px) On Wall mount projected capactive touchscreen monitor, 2xHDMI + 1xDisplayport.
Descriptions: 27 inch on-wall mount monitor with 10pts pcap touchscreen, bezel free with 4mm thick tempered glass and black coated metal case for vandal proof 24/7 use in public spaces.
Unit is in stock

Applications:

Television
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Product Features:

  • Bezel free design with toughened glass surface.
  • Front waterproof
  • Precise multi-point (10 points) touching.
  • Maintenance free.
  • Complete metal monitor with strong stability.
  • Supporting plug and play for win-7,-8 and -10. (Mac | Linux | Android with driver).
  • Unit can be touched with finger, hand gloves or stylus pencil.
  • Fast touch response (less than 10 ms).



Specifications:

General

Model:
AOD270-GPCAP-WMB (FHD model)  /   AOD270-UHD-GPCAP-WMB (UHD-4K model)
Size:
27" ( 27” active area)
Panel Type:
TFT-LCD
Backlight:
LED
Display colour:
1.07B colors (8bit+Hi+FRC)
Color:
Black
Material:
Metal housing, Glass: 4mm hardened cover glass
Mounting Option:
VESA 200x100 mm
Video Inputs
Inputs: VGA/ DVI (FHD model)  /  2x HDMI + 1x Displayport (UHD model)
Dimensions

Outside dimensions frame (wxhxd)
668 x 410 x 58 mm
Active area (wxh)
600.88 x 339.31 mm
Display

Native resolution:
1920 x 1080 @60HZ (FHD)  or 3840x2160 (UHD)
Ratio:
16:9
Contrast:
1000:1
Brightness:
300 cd/m
Viewing Angle (H/V):
178/178
Response time:
<12ms
Backlight life:
50.0000 hrs
Control:
OSD Control (Remote control is option)
Touchscreen

Touch Technology:
Projected capacitive Touch (G+G)
Detected touches
10 touches.
Response time:
<10ms
Input Method:
Finger, hand gloves, or conductive stylus
Touch times:
Unlimited
Touch Activation Force:
No minimum touch activation force is required.
Controller type:
EETI chipset 31xx
Operating System Support:
Windows2000, XP, 7, 8, 10, Android, MAC and Linux.
Environment

Temperature:
Operating:  -10°C ~ 70°C
Storage: -20°C ~ 80°C
Relative Humidity:
Operating: 90%(non-condensing at max 40°C)
Storage: 90%(non-condensing at max 40°C)
Altitude:
Up to 3000m
Electrical

Scan frequency:
60Hz
Operation Voltage:
Typical +DC 12V, +/- 10%  (24 volt option).
Power Supply:
110-220V AC to 12Volt DC, min. 2A
Power:
22 W


Packing

Agency Approvals:
CE, FCC, RoHS
Weight net.:
8.15 kg


Applications:
Promotions viewer
POS system
Exhibition
Education training
Public query machine
Self-service machine
Surveillance system
And more

Our touchscreen monitor standard includes: pcap touchscreen with integrated USB chassis controller +  USB-A-A cable 1.8 meter and 220 – 12 Volt Power Supply + DVI Cable

Opties:
FHD or UDH model FHD with 1920x1080 px   and UHD with 3840x2160 px
Touch controller interface: USB, RS232 met externe voeding of RS232 met interne voeding

Specifications :

Specs 27 inch AOD desktop touch Monitor
Driver downloads : Touchscreen driver downloads

You can purchase by selecting below mentioned options (if available). More info on tab "Options")
​Next add amount of products and push the button "Add to cart" and follow further on screen instructions. We advise you to make an account during the checkout if you are planning to buy more often.

Discount on prices:

  • Resellers/ installers and Manufacturers (OEM) are advised to login or register to receive discount on prices. After login discounted net.price excl.VAT for the product is given.
  • For projects with larger amounts than 5 pieces we advise you to contact us by webform or by phone: +31 (0)45 574 81 90.
Available options:
