10.4" On-wall mount (touch)Monitor

On wall mount AOD - muur montage AOD

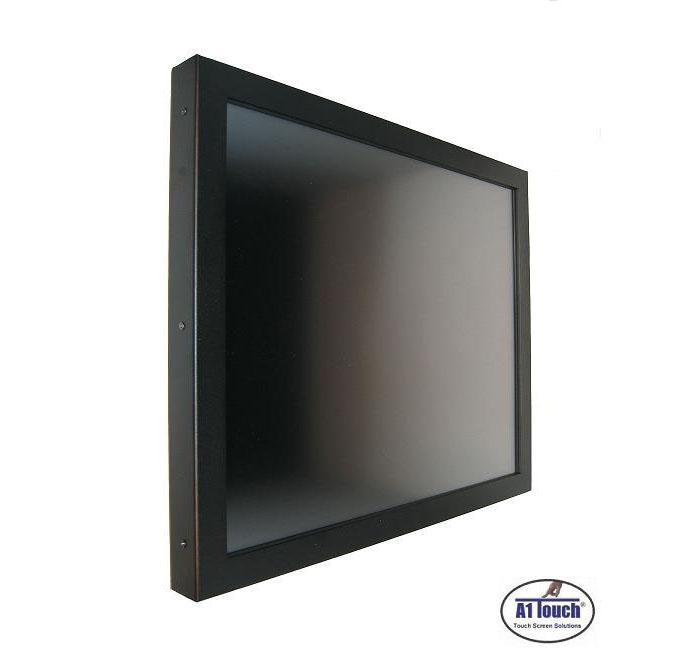

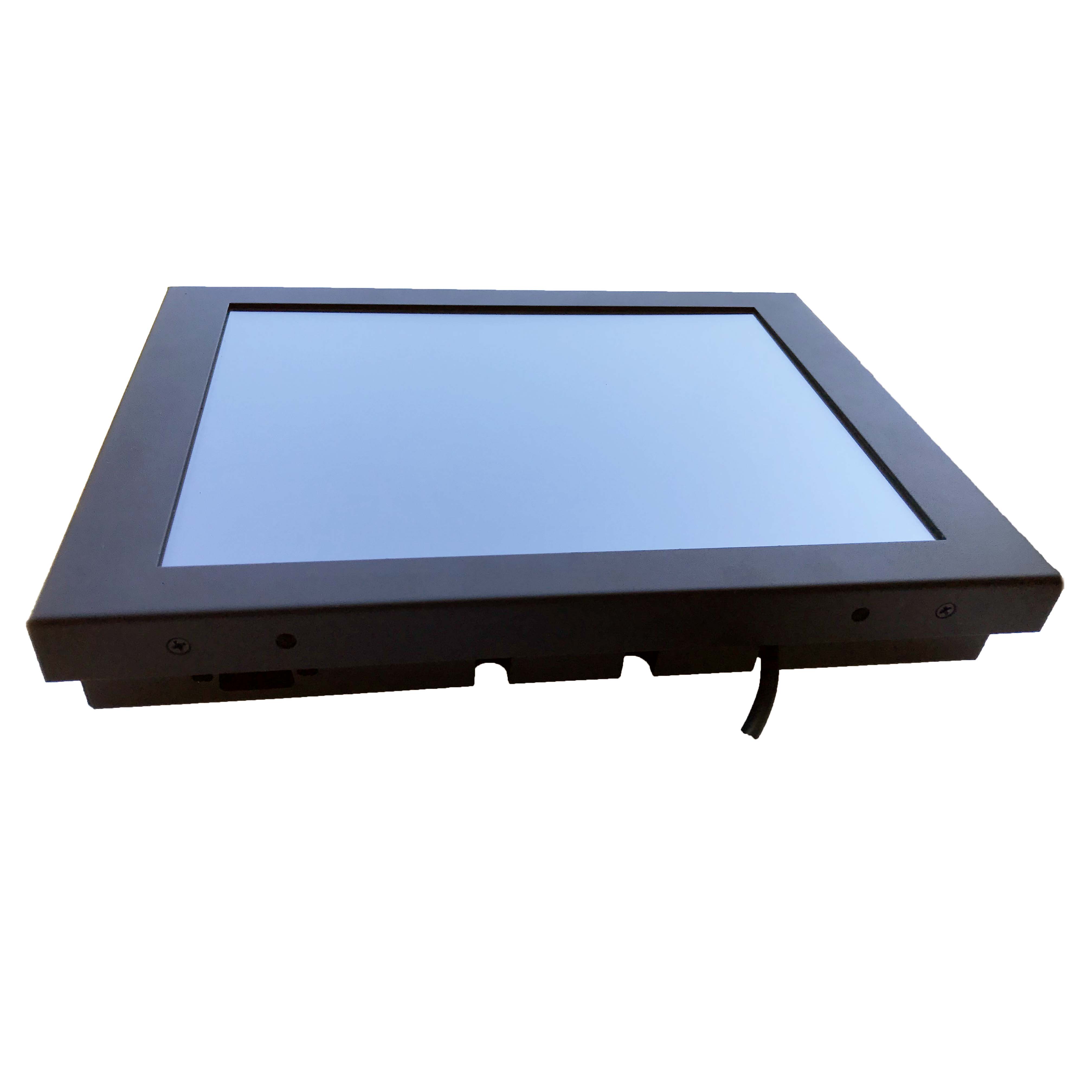

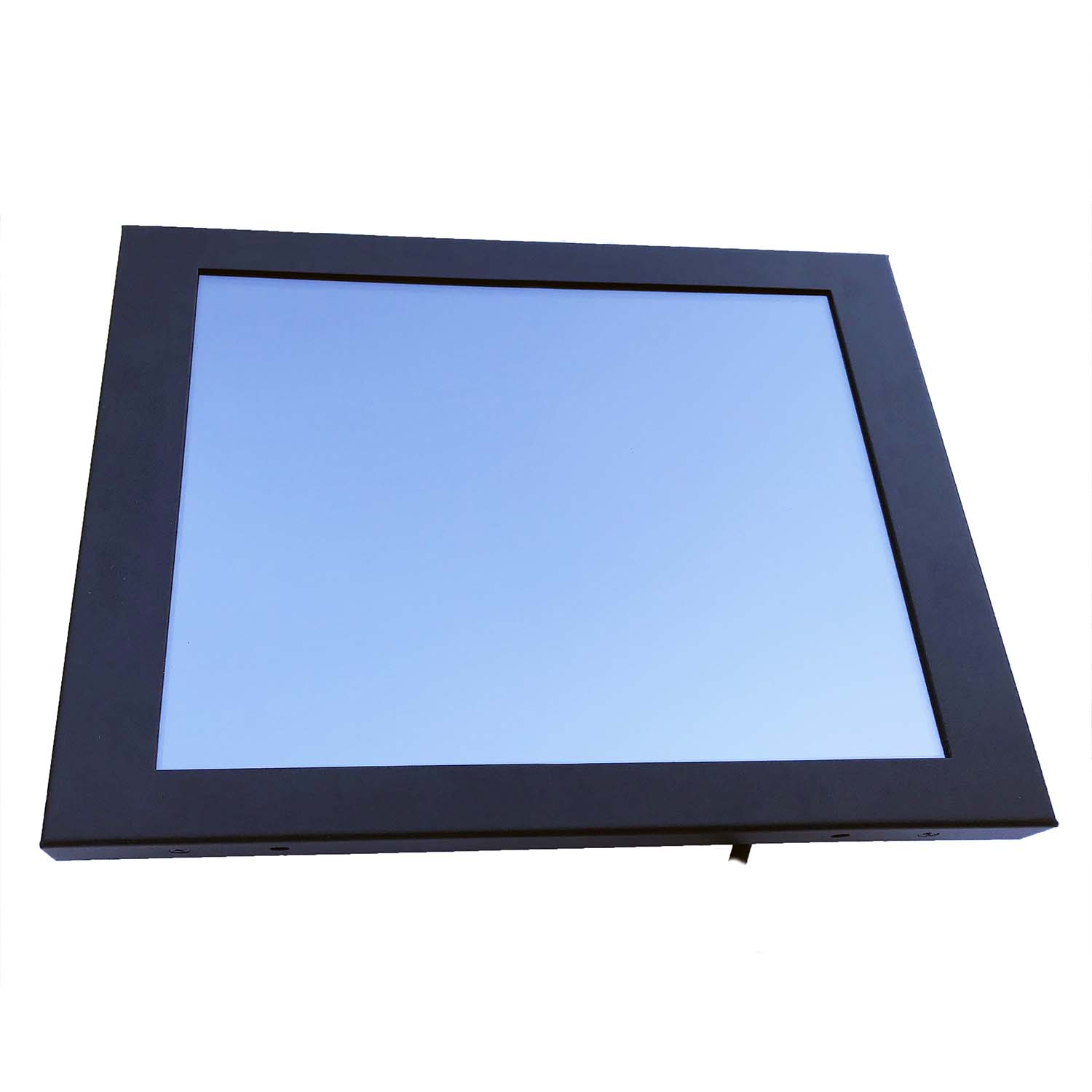

10.4" On-wall mount (touch)Monitor
Net price (excl.VAT) €315,00
Art.No.:
AOD104-....-NB / -EB
Brand:
A1Touch Solution
Model: AOD 104
Name: AOD / ATS 10.4" powder coated On-wall mount (touch) monitor, VGA+DVI.
Unit is in stock.
Color panel: Black powder Coated (other colors on request)
Model: 10,4 inch XGA TFT LCD Monitor
Type: 10,4" Color Active Matrix TFT LCD (AUO G104XVN01.0)
Resolution (max): 1024x768 px.
Color: 16.2M / 262K
Pixel: 0.2055 x 0.2055 mm
Brightness: 400 cd/m²
Contrast ratio: 1400:1
Viewing angle: 89°/89° horizontal 89°/89° vertical
Respons time 30 ms
Active area: 210.4 (H) x 157.8 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 265x197x42mm (wxhxd)
Weight 1,9 Kg
Mounting: VESA 75mm;  (No bracket/ stand included in delivery; See: mounting_brackets)

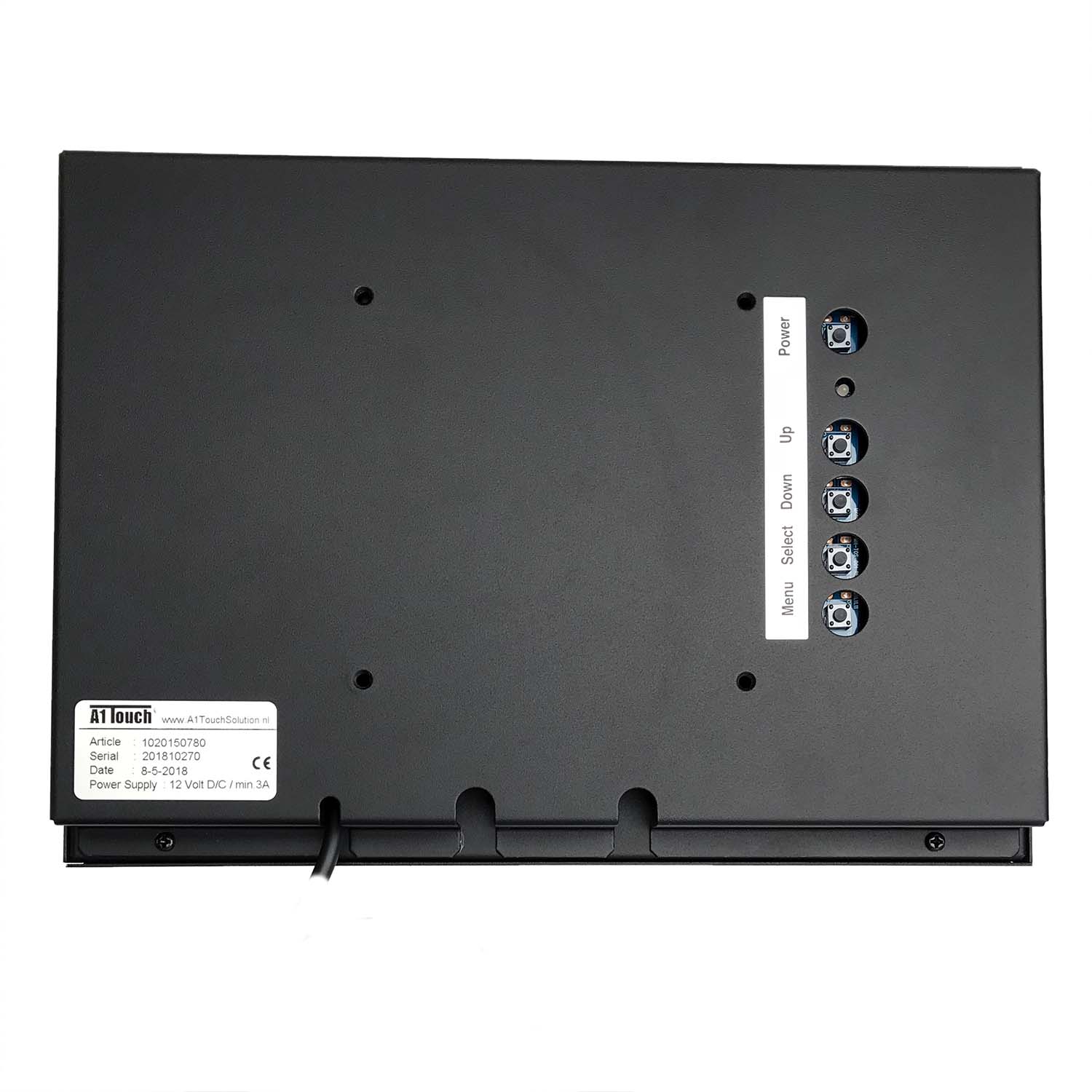

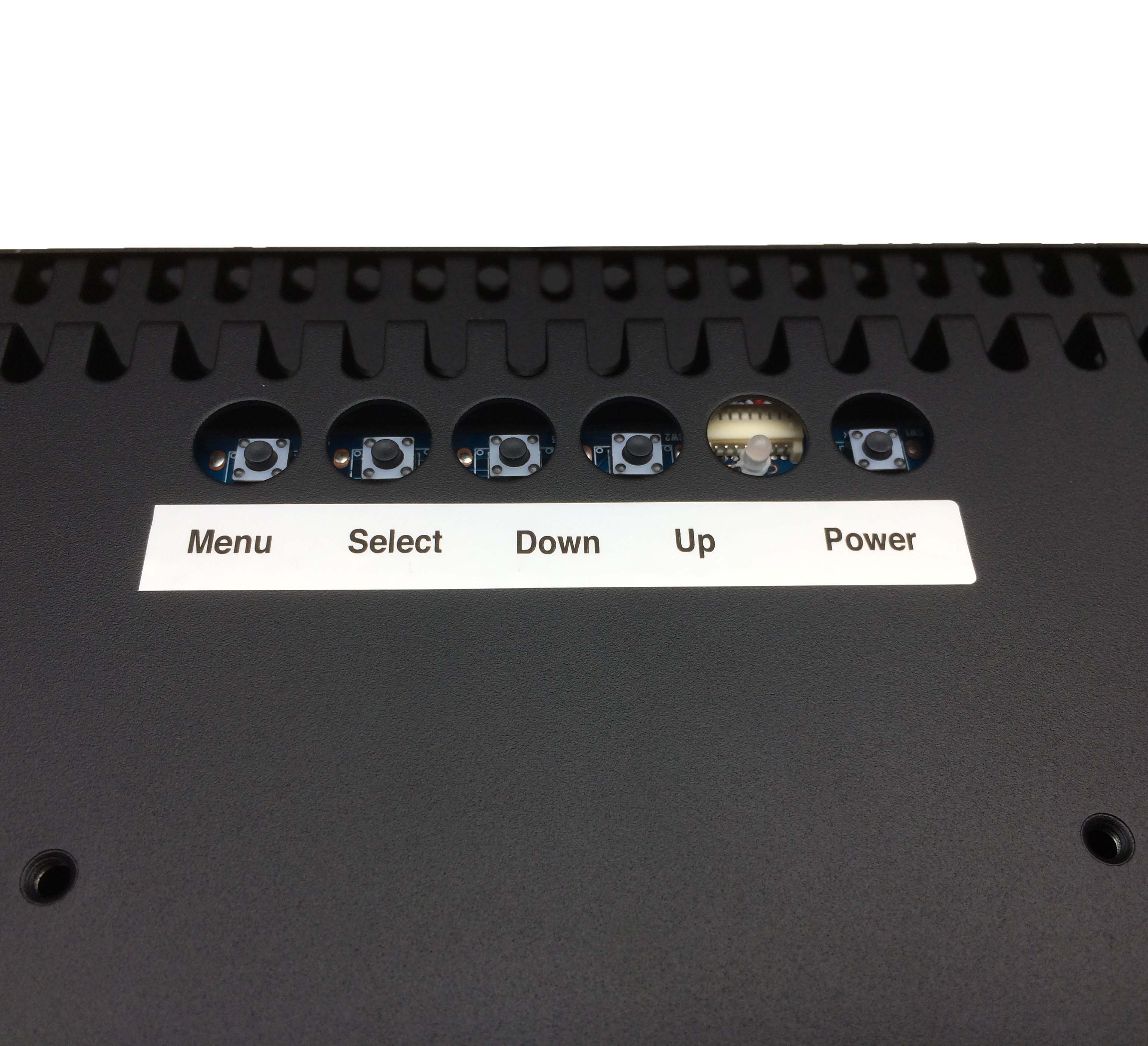

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC

Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.

Specifications / Manual :

Specs 10.4 inch AOD on-wall mount touch monitor manual
Dimensions : Dimensions 0.4 inch AOD on-wall mount touch monitor
Driver downloads : Touchscreen driver downloads
