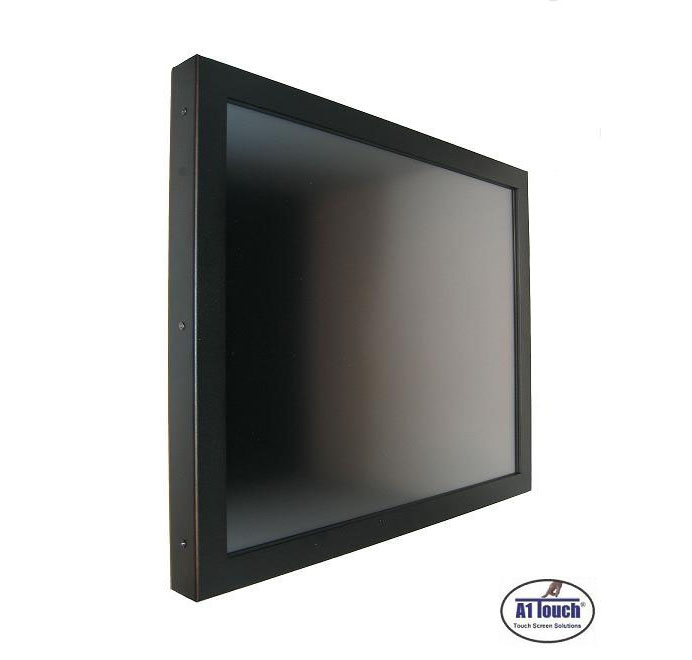

12.1" On-wall mount (touch)Monitor

On wall computer - muur montage computer
12.1" On-wall mount (touch)Monitor
Net price (excl.VAT) €363,00
Art.No.:
AOD121-....-NB / -EB
Brand:
A1Touch Solution
Name: AOD / ATS 12,1" black On-wall mount (touch)Monitor, VGA+DVI.
Descriptions: 12.1 inch wall mount monitor with or without touchscreen, touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Product is in stock
Color panel: Black powder Coated (other colors on request)
Model: 12.1 inch XGA TFT LCD Monitor
Type: 12,1" Color Active Matrix TFT LCD (AUO G121XN01 V0 )
Resolution (max): 1024 x 768 (SVGA)
Color: 262,144 (6bit)
Pixel: 0.24 x 0.24 mm
Brightness: 500 cd/m²
Contrast ratio: 700:1
Viewing angle: 80°/80° horizontal & 80°/80° vertical
Respons time 35 ms
Active area: 246 (H) x 184,5 (V) mm
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <35 watt max.
Power consumption stand by: <4 watt max.
Temperature opration mode: 0 °C - 50 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 300x239x46mm (wxhxd)
Weight 2,4 Kg
Mounting: VESA 75mm; (No bracket/ stand included in delivery; See: mounting_brackets)

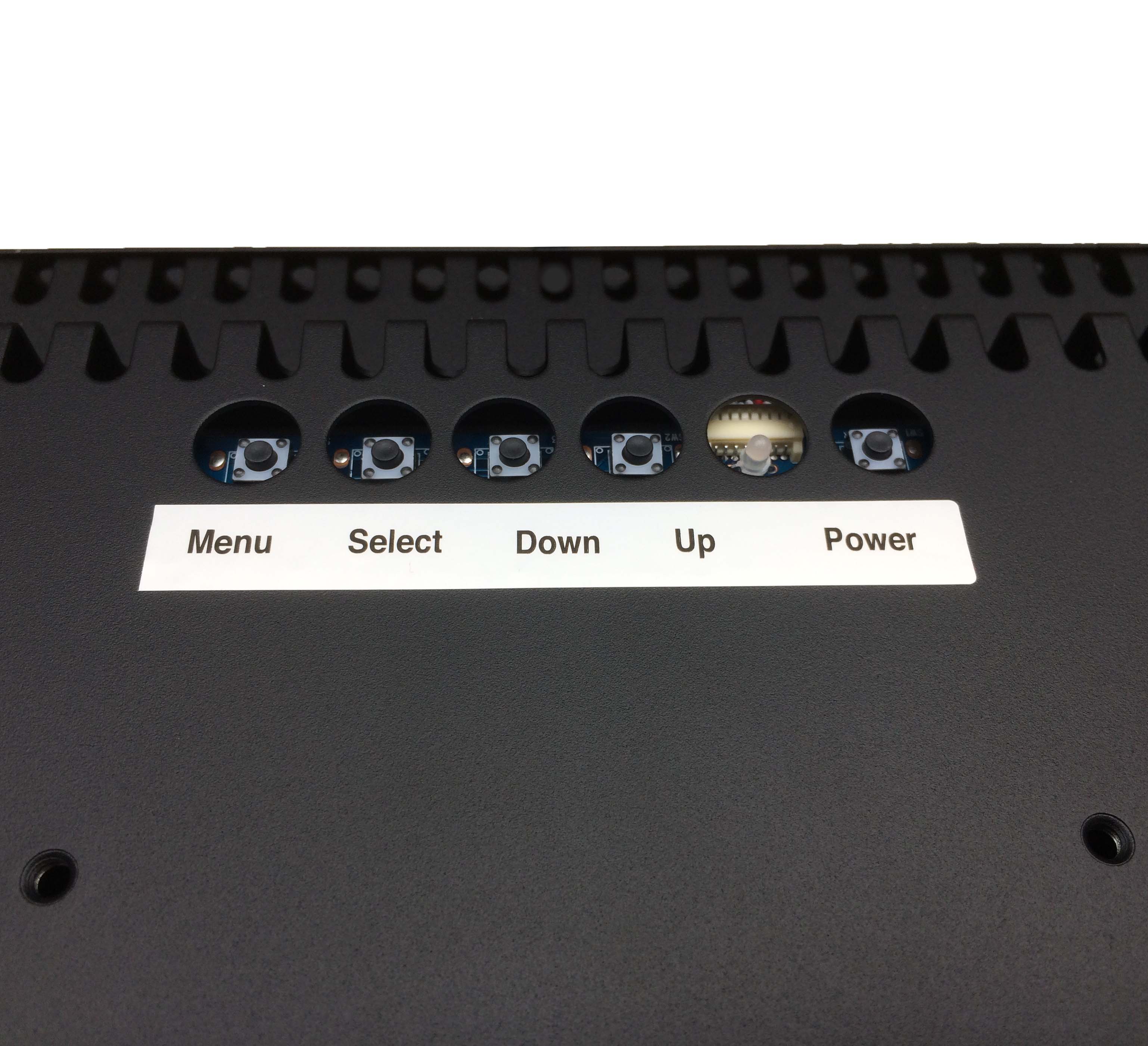

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, Surface Accoustic Wave or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     SAW: -Standard glare.
-Touchable with finger and glove.
-Single touch
-activation force less than 85 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.


Specifications / Manual :

Specs 12.1 inch AOD on-wall mount touch monitor manual
Dimensions : Dimensions 12.1 inch AOD on-wall mount touch monitor
Driver downloads : Touchscreen driver downloads

You can purchase here after you have logged in or made account by pushing the blue button "Login to proceed" below.

After you are logged in, you will see your net.price excl.VAT for the product.

Available options:
