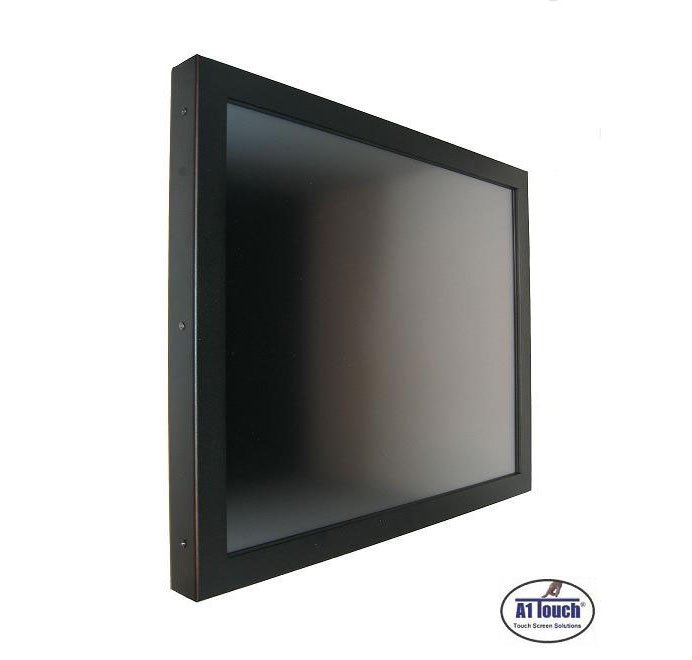

15.6" On-wall mount (touch)Monitor

on wall mount aod
15.6" On-wall mount (touch)Monitor
Net price (excl.VAT) €359,00
Art.No.:
AOD156-....-NB / -EB
Brand:
A1Touch Solution
Name: AOD / ATS 15.6" On-wall mount (touch)Monitor, VGA+DVI.
Descriptions: 15,6 inch wall mount monitor with or without touchscreen, touchscreen options like pcap, resistive, saw, ir or with protection glass. Black coated metal case for vandal proof 24/7 use is public spaces.
Unit is in stock
Color/material panel: Black powder Coated, metal chassis (other colors on request)
Model: 15.6 inch-wide Color a-Si TFT-LCD
Type: 15.6" Color Active Matrix TFT LCD (AUO G156XW01)
Resolution (native): 1366(x3) x 768 or FHD 1920 x 1080 (option)
Color: 262,144 (6bit)
Pixel: 252 (per one triad) ×252
Brightness: 300 cd/m²
Contrast ratio: 500:1
Viewing angle: 85°/85° & 85°/85° (vert/Hor)
Respons time 8 ms
Active area: 344.232 (H) x 193.536 (V)
VGA input Analog RGB (D-Sub 15-pins) + DVI
Plug and play: Yes DDC1 /DDC2B
Power: 12 Volts. included Adapter
Power consumption: <13 watt max.
Power consumption stand by: <3 watt max.
Temperature opration mode: 0 °C - +60 °C
Humidity operation mode: 10% ~ 90% R.H.
Size 380x233.8x45mm (bxhxd)
Weight 4,1 Kg
Mounting: VESA 100mm,  (No bracket/ stand included in delivery; See: mounting_brackets)

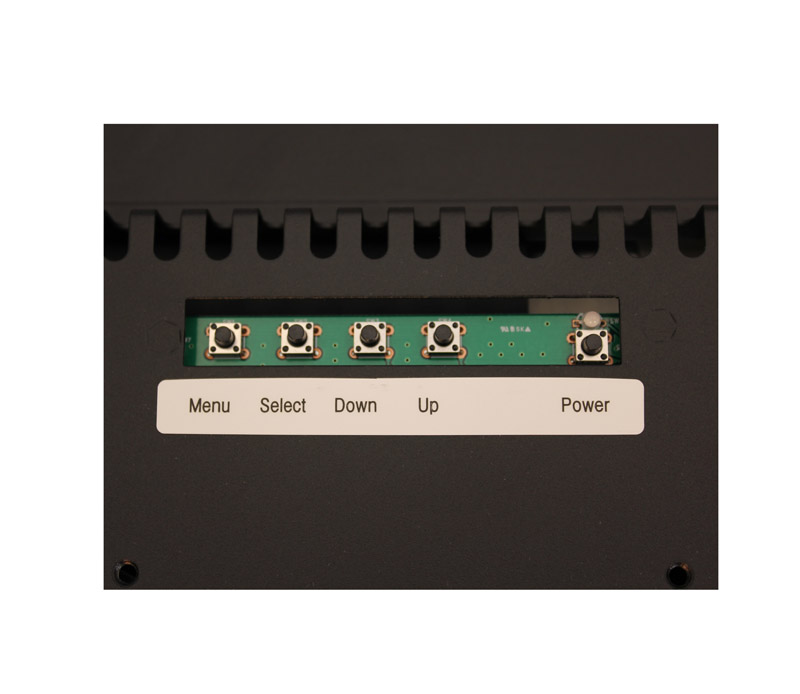

Users Mode: OSD Key:  Menu / Select / Power / Down / Up
Compatibility: VESA / IBM / MAC
Options:
Type of lcd display :  Native resolution: 1366x768 or FHD 1920x1080 px
Functionality: With or without touch
-        without touch: Acrylic or glass
-        with touch:
Type of Touch:
5 wire resitive, or Projected Capacitive
Not sure what to use?  Call us at +31 (0)45 5748190 or send us contactform
-    5 wire resistive : -Standard non-glare.
-Touchable with finger, glove and stylus.
-Single touch
-activation force less than 40 gramm.
-     Projected Capacitive: -Standard glare.
-Touchable with finger, glove and pcap stylus.
-10 points touch
-activation force less than 1 gramm.
External protection: Standard IP44 or IP65 or higher (not for SAW)
Touch controller interface: USB, RS232 with external power or RS232 with internal power
Video input: VGA+DVI or VGA+DVI+AV.

Specifications / Manual :

Dimensions :
Driver downloads : More Info
